Teach Pendant Repair

Tested teach pendants, custom-built cables, and LCD upgrades.

Teach Pendant Repair by Manufacturer

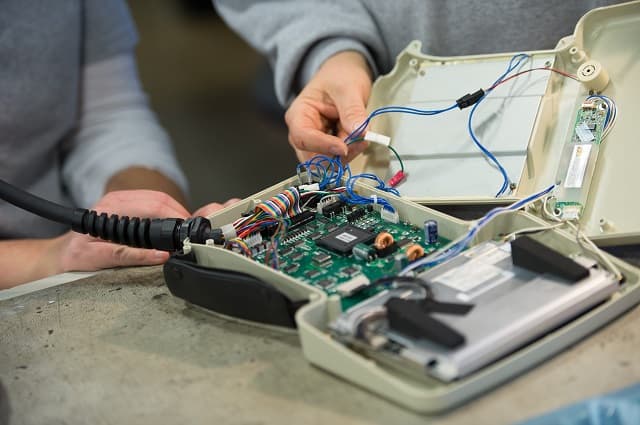

Diagnose, Fix, and Repair Teach Pendants
Repair 3,000 Teach Pendants per Year

Restore each teach pendant to OEM spec.

• Fix or replace cracked, scratched, or pitted cases, touchscreens, keypads, and displays


• Measure resistance (Ω) in normally open (NO) and normally closed (NC) circuits


• The gasket is clean, in good condition, and properly seated


• Establish communication with the robot controller


• Verify the joystick, deadman switch, touchscreen, E-stop button, PCBs, and LCD


• Apply a screen overlay and package securely in an anti-static bag for safe shipping

Featured Series
ABB IRC5 Robot Controller with Teach Pendant
ABB
IRC5

ABB FlexPendants for single and dual cabinet controllers.

Teach Pendant on Front FANUC R-J3i Robot Controller
FANUC
R-J3iB

Teach pendants and iPendants for A and B-cabinet configurations.

Nachi AX
Nachi
AX

OEM-authorized, trained in Japan by Nachi America Inc.

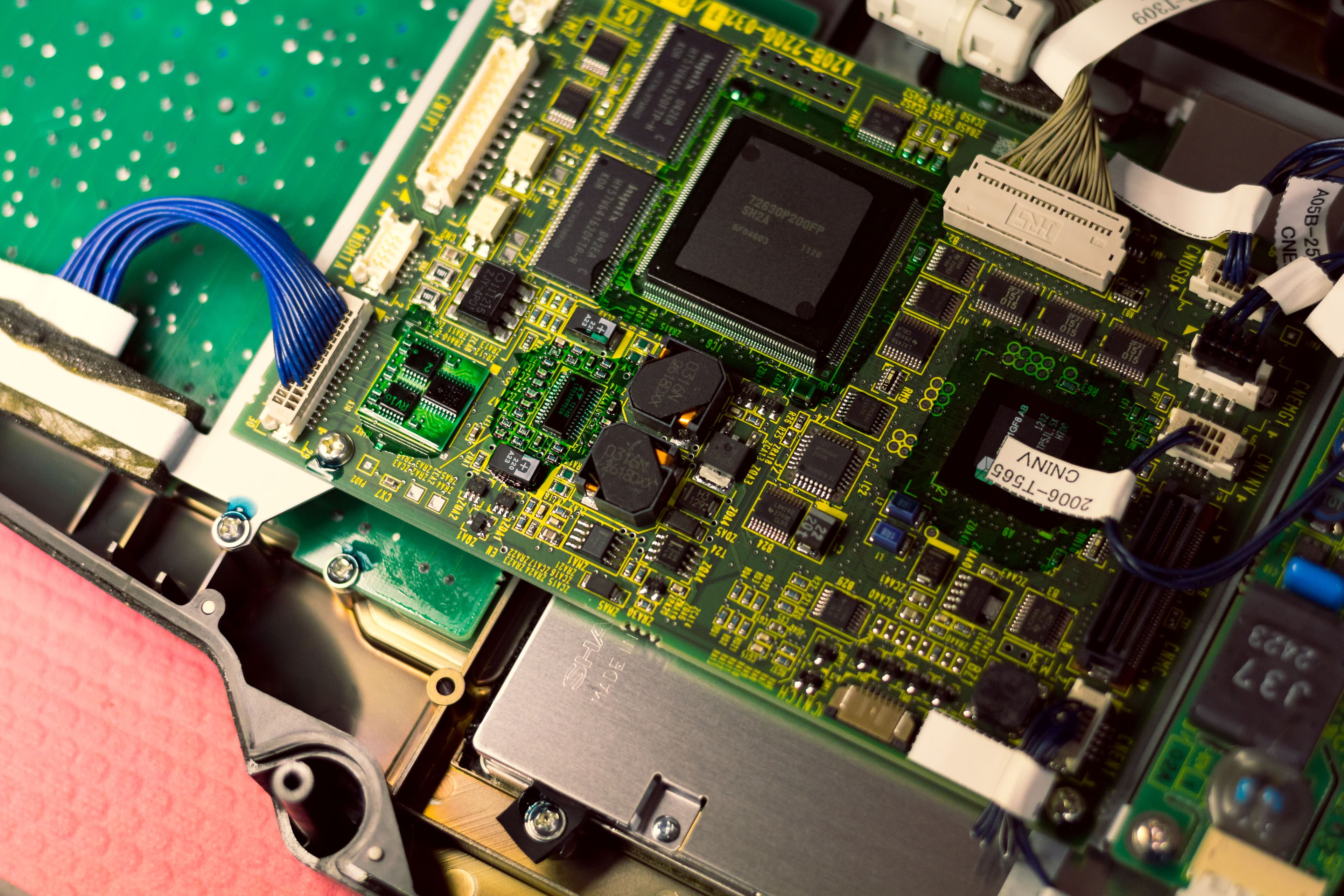

Inspect Solder Joints at 10x Magnification

Precision Soldering — J-STD-001 Endorsed, Certified IPC Specialist (CIS)

Good pad coverage, no solder bridges, & zero trace damage.

Teach Pendants Tested for 2 Hours
196 Robot Controllers and Robots Arms for Final Test

• Measure ohms (Ω) when switching between TEACH and AUTO modes


• Bend and twist the cable, navigate menus and screens, and test numeric and application-specific keys


• Screen timeout to preserve the backlight and LCD


• With motor power ON, test the E-stop button and observe the response


• Hold the deadman switch, jog the robot, release it to stop motion, and turn the motor power OFF


• Press the stop button while the TP Program is in AUTO

"Robot Row"
In Stock
Teach Pendant Cables

High-quality teach pendant cables made from UL-listed materials, built in-house, and tested on a Microtest Cable Tester.
