In Stock
FANUC

FANUC - M-20iA 35M

$27,000.00
Refurbished | FANUC - M-20iA 35M with R-30iB Plus

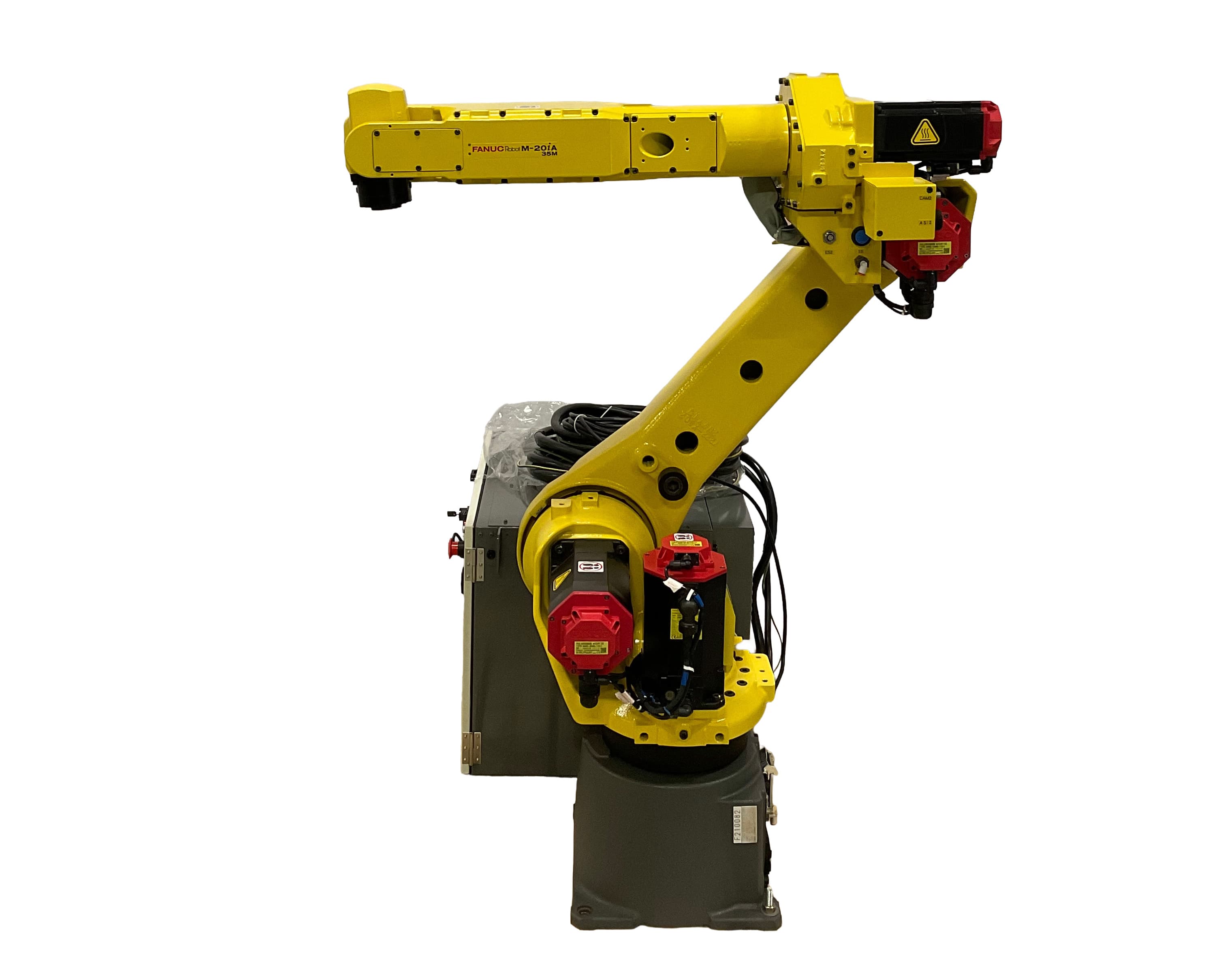

The FANUC M-20iA 35M is a 35 kg payload, floor-mounted 6-axis articulated robot with 1813 mm reach.

Questions about this item? Contact a specialist

Test Method
Test: Functional
Quality Guaranteed

Refurbished robots are rebuilt to OEM specifications per the attached Scope of Work and includes after-sales support and a warranty.

No Missing Parts

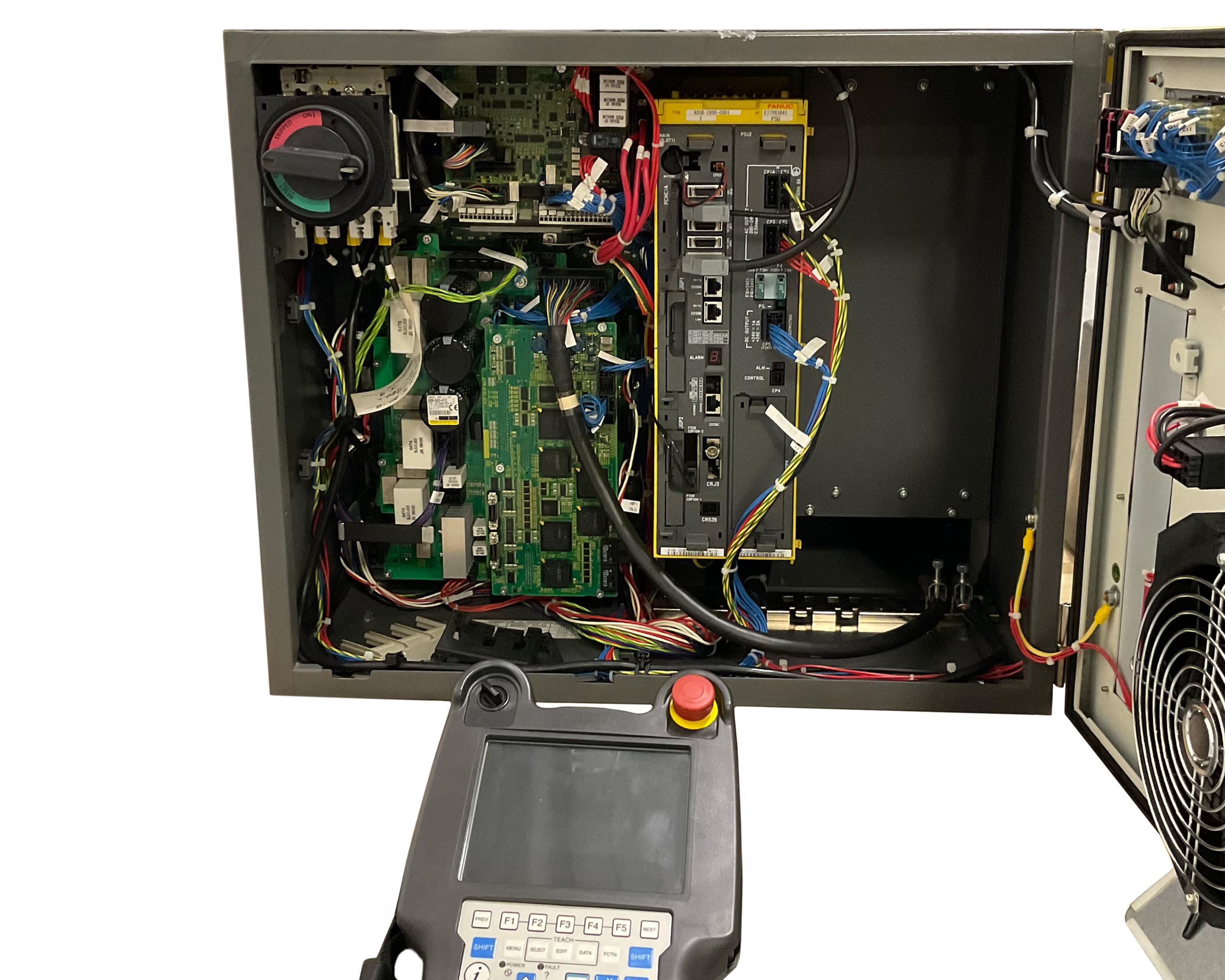

New and refurbished robots include the teach pendant, cables, and robot controller.

US-based Warehouse

Robots ship from Warren, Michigan—no drop-shipping from unknown or unqualified third parties.

Controllers

In Stock
FANUC - R-30iB Plus
FANUC
FANUC - R-30iB Plus
Robots | Robot Controller
Work Directly with Our Application Engineers to Select, Configure, and Verify Your Robot Before You Buy

Review the robot's BackInfo, a "snapshot" of the robot's current configuration, including software and installed options.


Get detailed photos inside and out, serial number, nameplate, connections, and interface information.


Match existing functionality or enhance capabilities with hardware add-ons and software options.


Register the robot, software, and licenses directly to your company. You own the robot, and the OEM officially recognizes it.

Safety

Consult with a CMSE® Certified Machinery Safety Expert (TÜV NORD).

I/O Expansion

Enhance connectivity and integration with I/O add-on modules or a PLC-based control system.

Auxiliary Axis

Expand abilities with external axes for RTUs, positioners, and multi-function grippers.

Vision

Integrate barcode scanners and AI-powered 2D/3D vision for inspection, guidance, and part identification.

Software

Add application-specific software individually or in an unlimited bundle.

FANUC
FANUC - M-20iA 35M
Technical Details
Repeatability
±0.08 mm
Motion Range
370° (J1) 260° (J2) 458° (J3) 400° (J4) 280° (J5) 900° (J6)
Maximum Speed
180°/sec (J1) 180°/sec (J2) 200°/sec (J3) 350°/sec (J4) 350°/sec (J5) 400°/sec (J6)
Controller
R-30iB Plus
Teach Pendant
iPendant
Communication
FL-net; DeviceNet; PROFIBUS; PROFINET; CC-Link; EtherNet/IP; EtherCAT; CC-Link IE
Connections

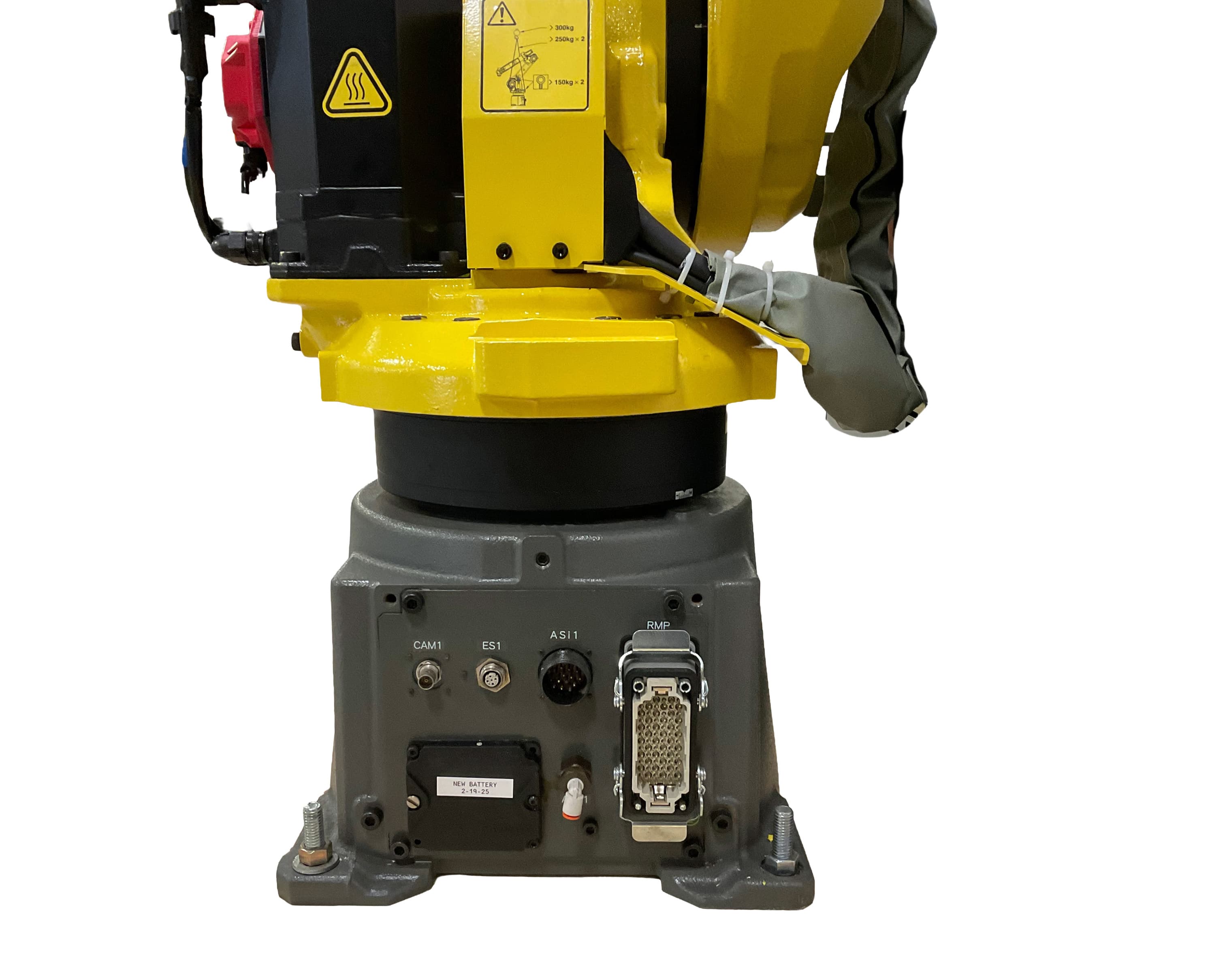

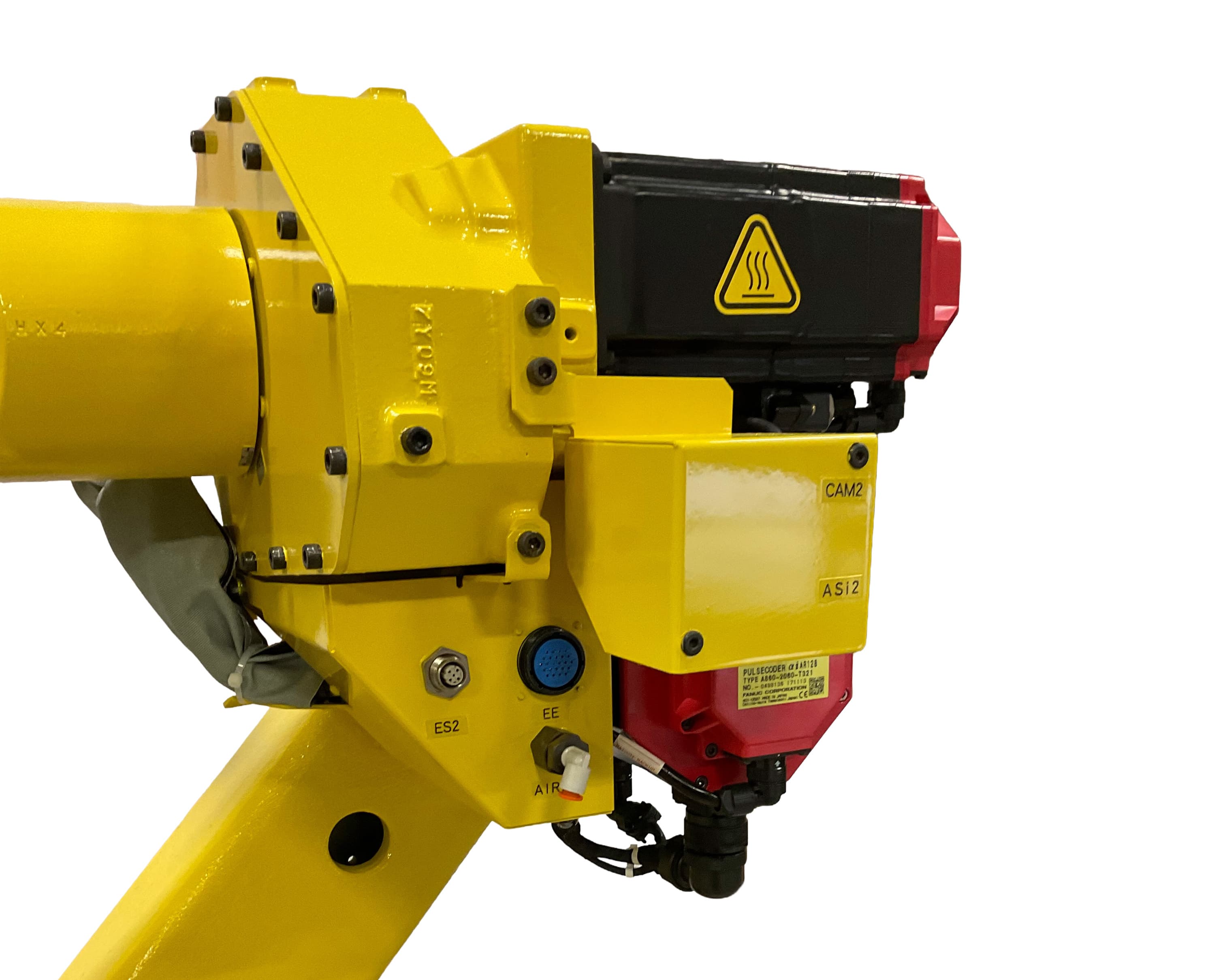

CAM1, CAM2; ES1, ES2; EE; AIR1, AIR2; ASi1, ASi2; RMP
Product Information
Manufacturer
FANUC
Category
Robot Arm
Subcategory
Robots
Series
M-20 Series
Part Number
M-20iA 35M
Type
Articulated
Environment
IP67 wrist, J3 arm; Other part IP54
Payload (kg)
35
Reach (mm)
1813
Mounting
Floor
Application
Material Handling, Assembly, Machine Tending
Number of Axes
6
