FANUC - M-20iA

$8,000.00
As-is | FANUC - M-20iA with R-30iA

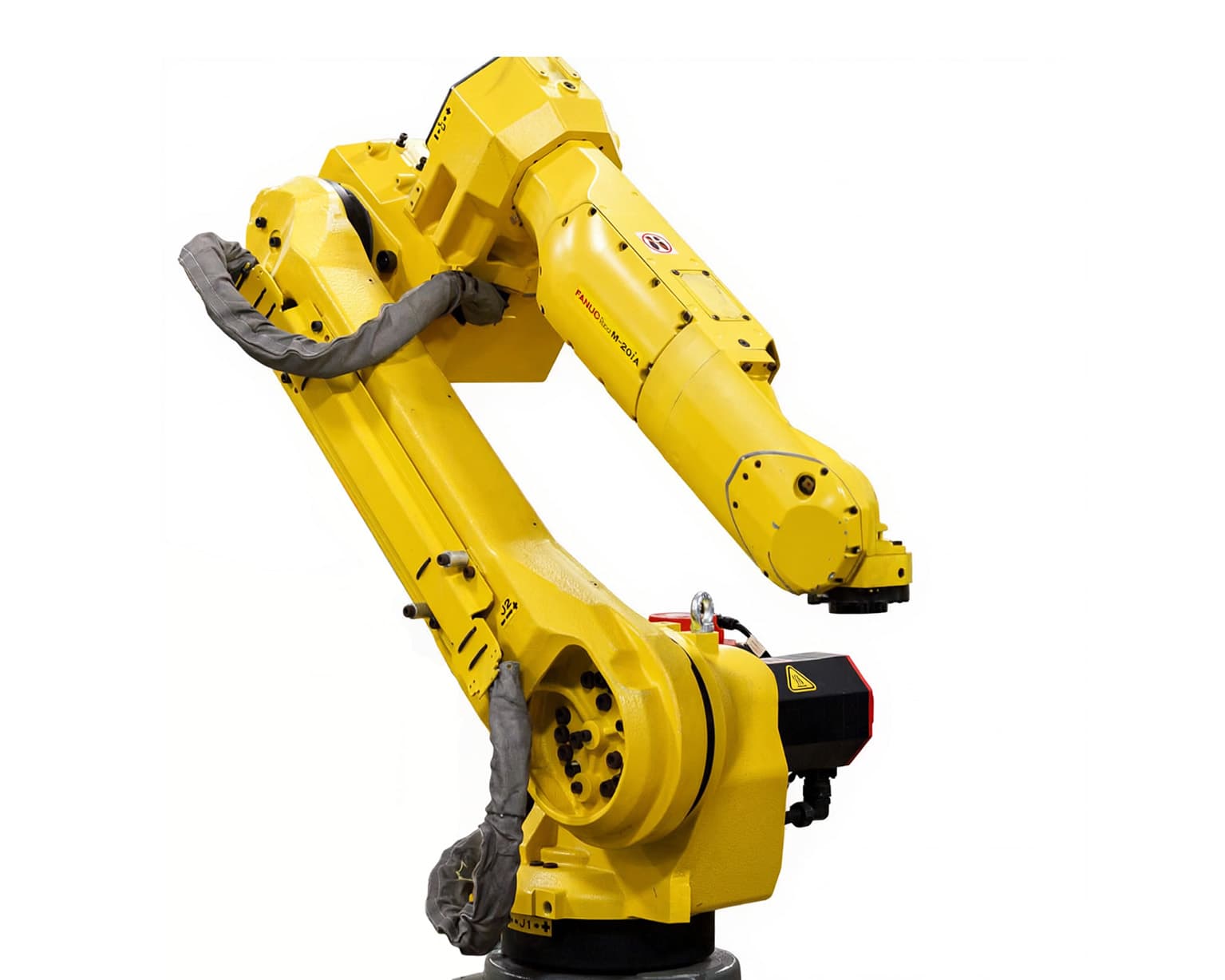

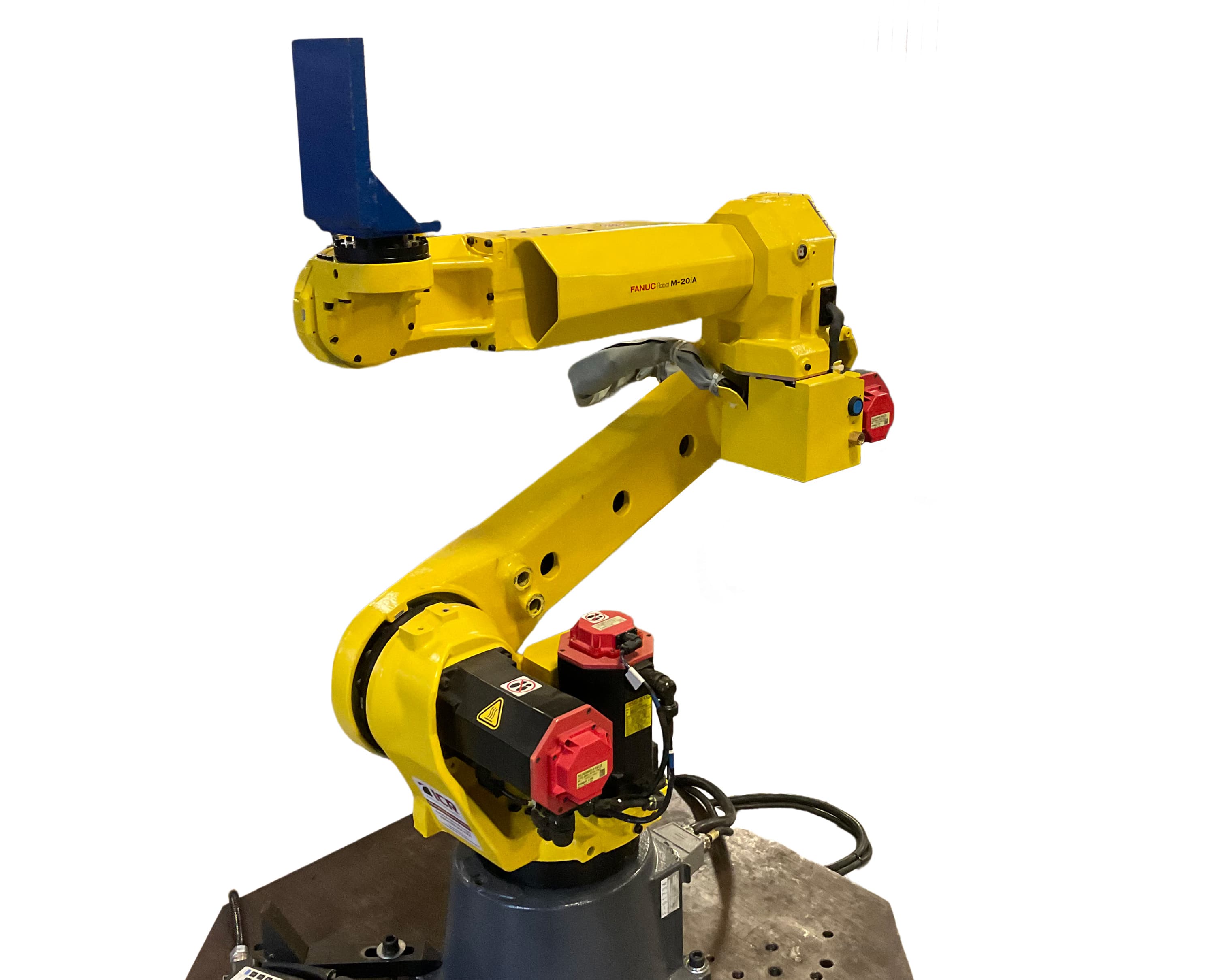

The FANUC M-20iA is a 20 kg payload, any-angle 6-axis articulated robot with 1811 mm reach.

Questions about this item? Contact a specialist

Test Method
Test: Functional
Quality Guaranteed

Refurbished robots are rebuilt to OEM specifications per the attached Scope of Work and includes after-sales support and a warranty.

No Missing Parts

New and refurbished robots include the teach pendant, cables, and robot controller.

US-based Warehouse

Robots ship from Warren, Michigan—no drop-shipping from unknown or unqualified third parties.

Controllers

In Stock
FANUC - R-30iA
FANUC
FANUC - R-30iA
Robots | Robot Controller
Work Directly with Our Application Engineers to Select, Configure, and Verify Your Robot Before You Buy

Review the robot's BackInfo, a "snapshot" of the robot's current configuration, including software and installed options.


Get detailed photos inside and out, serial number, nameplate, connections, and interface information.


Match existing functionality or enhance capabilities with hardware add-ons and software options.


Register the robot, software, and licenses directly to your company. You own the robot, and the OEM officially recognizes it.

Safety

Consult with a CMSE® Certified Machinery Safety Expert (TÜV NORD).

I/O Expansion

Enhance connectivity and integration with I/O add-on modules or a PLC-based control system.

Auxiliary Axis

Expand abilities with external axes for RTUs, positioners, and multi-function grippers.

Vision

Integrate barcode scanners and AI-powered 2D/3D vision for inspection, guidance, and part identification.

Software

Add application-specific software individually or in an unlimited bundle.

FANUC
FANUC - M-20iA
Technical Details
Repeatability
±0.03 mm
Motion Range
±185° (J1) +160° -100° (J2) +273° -185° (J3) ±200° (J4) ±180° (J5) ±450° (J6)
Maximum Speed
195°/sec (J1) 175°/sec (J2) 180°/sec (J3) 360°/sec (J4) 360°/sec (J5) 550°/sec (J6)
Controller
R-30iA; R-30iB
Product Information
Manufacturer
FANUC
Category
Robot Arm
Subcategory
Robots
Series
M-20 Series
Part Number
M-20iA
Type
Articulated
Environment
IP67 wrist, J3 arm; Other part IP54
Payload (kg)
20
Reach (mm)
1811
Mounting
Floor, Invert, Angle
Application
Machine Tending, Material Handling, Assembly, Pick and Place, Dispensing
Number of Axes
6
