KAWASAKI - BX100N
In Stock
KAWASAKI

KAWASAKI - BX100N

$22,000.00
New | KAWASAKI - BX100N with E02

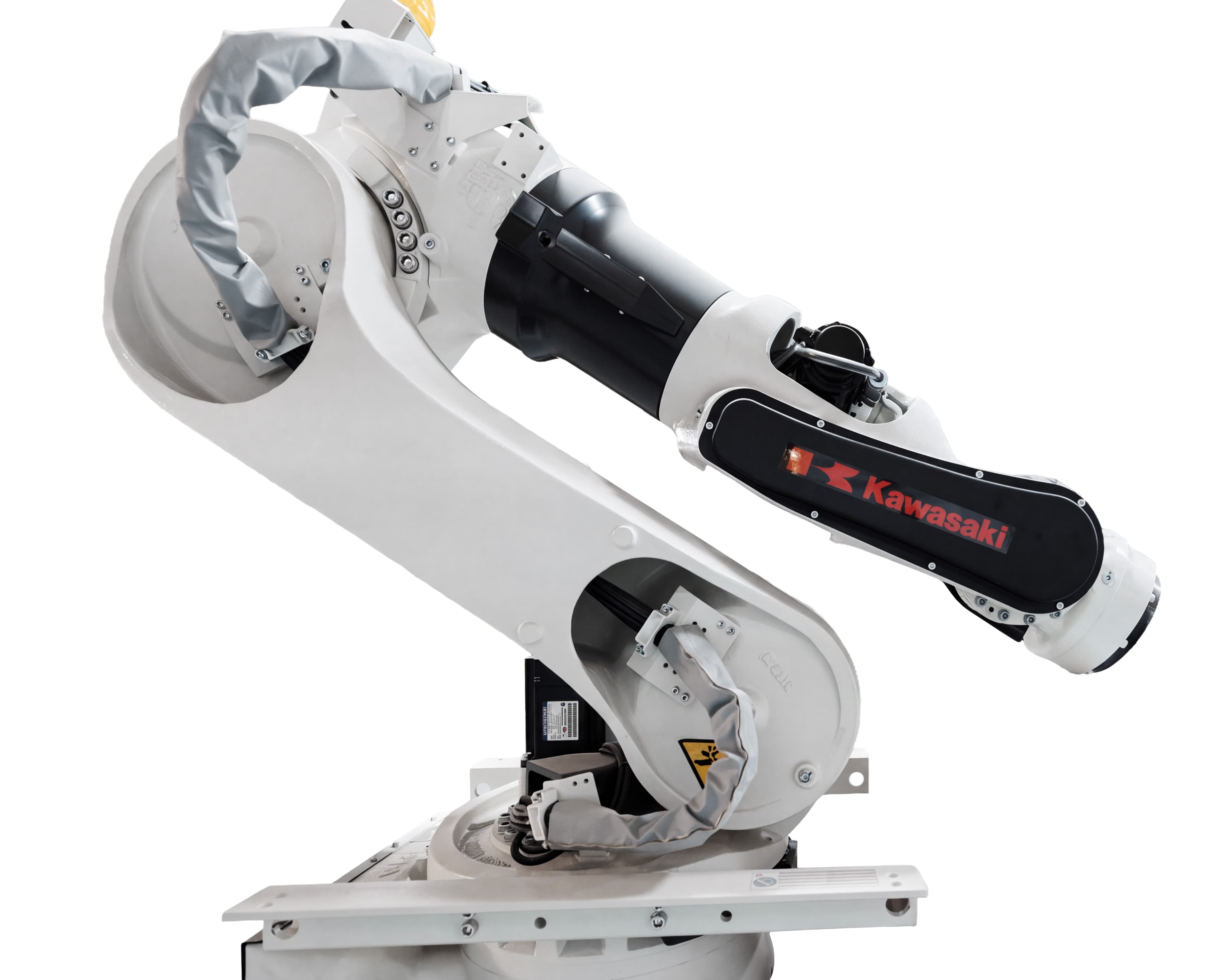

The Kawasaki BX100N-B with Cubic-S Robot Safety System is a 100 kg payload, floor-mounted 6-axis articulated robot with a 2200 mm reach.

Questions about this item? Contact a specialist

Test Method
Test: Functional
Quality Guaranteed

Refurbished robots are rebuilt to OEM specifications per the attached Scope of Work and includes after-sales support and a warranty.

No Missing Parts

New and refurbished robots include the teach pendant, cables, and robot controller.

US-based Warehouse

Robots ship from Warren, Michigan—no drop-shipping from unknown or unqualified third parties.

Controllers

In Stock
KAWASAKI - E02
KAWASAKI
KAWASAKI - E02
Robots | Robot Controller
Work Directly with Our Application Engineers to Select, Configure, and Verify Your Robot Before You Buy

Review the robot's BackInfo, a "snapshot" of the robot's current configuration, including software and installed options.


Get detailed photos inside and out, serial number, nameplate, connections, and interface information.


Match existing functionality or enhance capabilities with hardware add-ons and software options.


Register the robot, software, and licenses directly to your company. You own the robot, and the OEM officially recognizes it.

Safety

Consult with a CMSE® Certified Machinery Safety Expert (TÜV NORD).

I/O Expansion

Enhance connectivity and integration with I/O add-on modules or a PLC-based control system.

Auxiliary Axis

Expand abilities with external axes for RTUs, positioners, and multi-function grippers.

Vision

Integrate barcode scanners and AI-powered 2D/3D vision for inspection, guidance, and part identification.

Software

Add application-specific software individually or in an unlimited bundle.

KAWASAKI
KAWASAKI - BX100N
Technical Details
Repeatability
±0.06 mm
Motion Range
±160° (J1) +120° -65° (J2) +90° -77° (J3) ±210° (J4) ±125° (J5) ±210° (J6)
Maximum Speed
135°/sec (J1) 110°/sec (J2) 140°/sec (J3) 200°/sec (J4) 200°/sec (J5) 300°/sec (J6)
Controller
E02G-A001
Product Information
Manufacturer
KAWASAKI
Category
Robot Arm
Subcategory
Robots
Series
BX Series
Part Number
BX100N
Type
Articulated
Environment
IP67 wrist, arm IP54
Payload (kg)
100
Reach (mm)
2200
Mounting
Floor
Application
(RSW) Resistance Spot Welding, Material Handling, Palletizing
Number of Axes
6
